| Resolution |
A low resolution file MUST NEVER be resampled to 300dpi. Files that are configured as 72 dpi but have the proper pixel dimensions can be resized.

Resampling Image for 300 dpi.

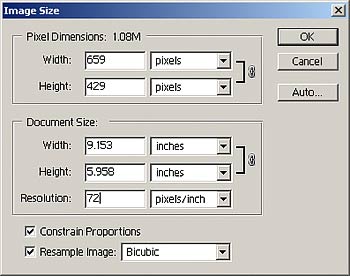

Make note of the width and height of your image in pixels (pixel dimension)

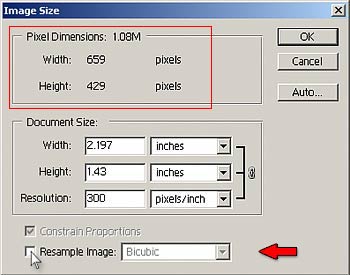

Unclick on the "Resample Image" box. This will not allow the Pixel Dimensions to change

Change the value of the resolution field to 300 pixels/inch



Illustrator 10
  | Resolution |

To determine the resolution of an image placed in Illustrator:

Go to Window>Document Info

Click on small arrow at the right of the Document Window information

Click on Embedded Images

Adobe Illustrator, InDesign, and FreeHand are object layout applications. They handle two different kinds of object: Vector and Raster.

Vectors are defined mathematically. Vectors are resolution independent, so they can be scaled to any size with absolutely no loss of quality.

Raster images are fixed resolution bitmaps with a set pixel dimensions. Scaling a 2“ by 2” raster image to 4” by 4” reduces the number of pixels per inch by 50%.

Pay careful attention NOT TO SCALE A RASTER OBJECT so that the print output is less than 300 PPI. For a raster image to print properly, it must be provided at 300 pixels per inch (ppi or dpi) at the final output dimension.
